Best Bolt Torquing Service in India: Controlled Bolting & Stud Tensioning Contractors
Looking for a certified bolt torquing contractor to guarantee zero-leak performance during critical plant shutdowns and construction tie-ins? Boltorq Infracon delivers the best bolt torquing service in India, combining calibrated hydraulic torque wrenches, digital electric multipliers, and 4000-bar hydraulic stud tensioners.
Operating under strict ASME PCC-1 guidelines, our specialized field engineers calculate precise target bolt preloads, inspect flange joint alignment, and execute multi-pass star tightening sequences across refineries, power plants, wind turbines, and petrochemical complexes.
QUICK SPECIFICATION MATRIX
| Execution Parameter | Field Capability Benchmark |
| Max Torque Capacity | Up to 72,000 Nm (Hydraulic & Electric Driven) |
| Max Tensioning Pressure | Up to 4,000 Bar (Ultra-High Pressure Hydraulic Pumps) |
| Standard Compliance | ASME PCC-1, ANSI B16.5, & API 6A Flange Ratings |
| Pass-Around Protocol | 4-Pass Star Pattern (30%, 60%, 100%, 100% Rotational) |
| Leak Guarantee Rate | 100% First-Pass Hydrotest Success Rate |
| Rapid Deployment | 24/7 Mobilization from Jamnagar Central Hub |
Torque CapacityAccuracy StandardProtocol StandardHYDRAULIC TORQUE TIGHTENING & MULTI-PASS TORQUING

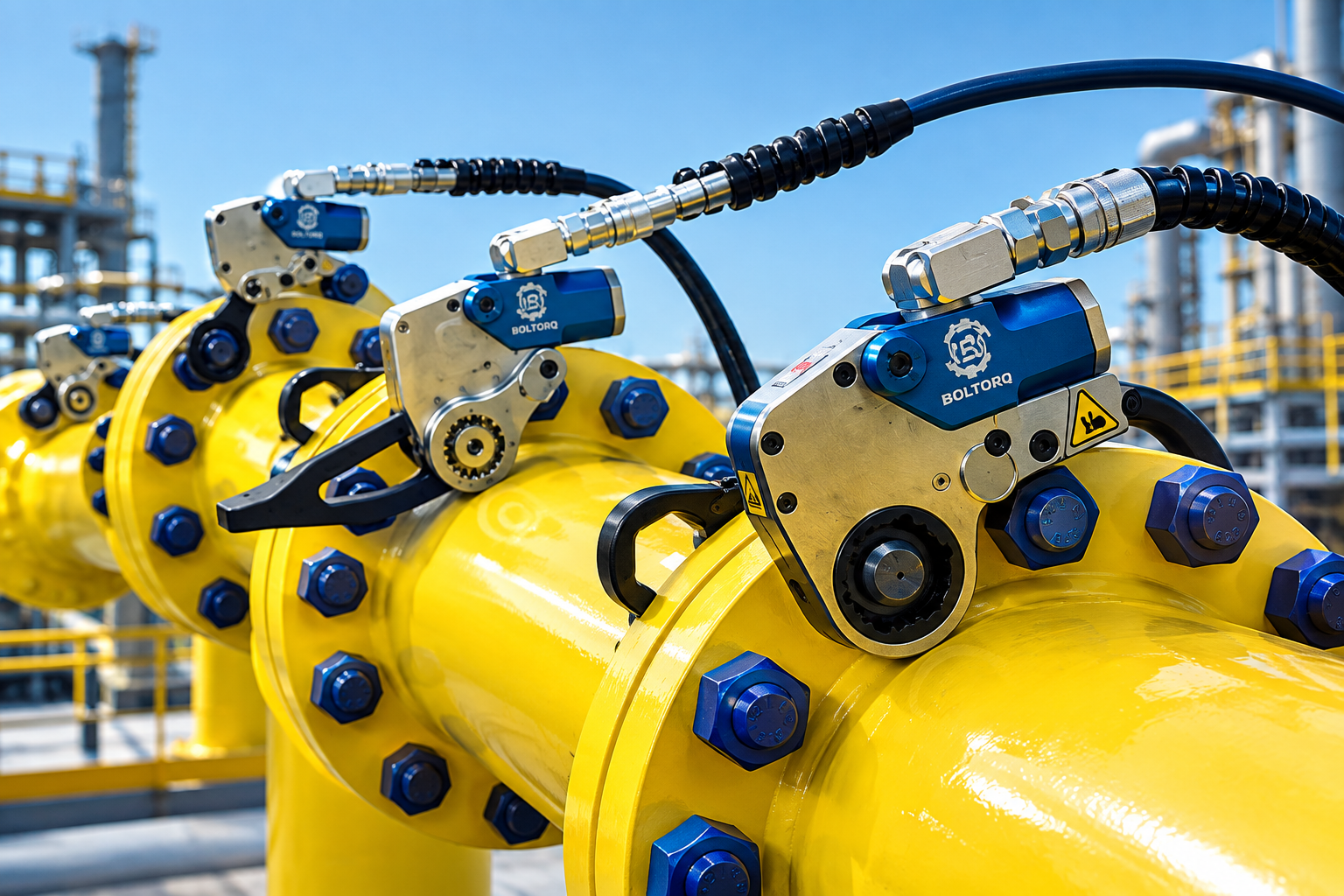

Execution of high-tonnage bolt tightening using low-profile square-drive and ultra-compact hex-cassette hydraulic wrenches across restricted clearance heat exchanger channels, vessel manways, and heavy process pipe flanges.
- Technical Precision: Multi-pass star-pattern tightening protocols based on nut-factor ($K$) friction coefficients, bolt yield stress, and target gasket seating limits.
- Safety & QA Protocols: Integrated anti-reverse pawls, hands-free magnetic backup wrenches, and calibrated pressure monitoring to eliminate flange warping and thread galling.
Pressure RatingLoad AccuracyBolt Size CapabilityULTRA-HIGH PRESSURE HYDRAULIC STUD TENSIONING
Direct axial stud elongation using multi-stage pneumatic and electric hydraulic tensioner pumps. Applies pure tensile force to stretch bolts simultaneously without rotational friction or torsional stress.
- Technical Precision: Ideal for critical reactor vessel heads, main steam valves, high-pressure heat exchangers, and wind turbine foundation anchors.
- Safety & QA Protocols: Over-stroke limit indicators, automatic pressure relief safety valves, and high-pressure burst-proof twin hose assemblies.
Compliance CodeFirst-Pass SuccessASME PCC-1 FLANGE MANAGEMENT & GAP ALIGNMENT
Turnkey joint integrity management including 3D optical flange face alignment checks, rotational gap measurement, thread cleaning, hard-washer inspection, and calibrated gasket seating.
- Technical Precision: Eliminates flange face parallelism errors and radial misalignment—the leading cause of hydrotest leaks—ensuring 100% equal gasket load compression across ANSI B16.5, API 6A, and custom heavy flanges.
- Safety & QA Protocols: Non-destructive flange face inspection, thread pitch/lead error verification, and standardized joint safety tagging.
Data VerificationQA DeliverableULTRASONIC BOLT ELONGATION AUDITING & LOAD VERIFICATION
Advanced ultrasonic stress measurement (ultrasonic bolt auditing) to calculate actual physical stud stretch before, during, and after torque or tension application.
- Technical Precision: Bypasses friction variables (K-factor estimates) by measuring real-time axial elongation (delta L) and residual clamping force, providing absolute physical proof of joint load.
- Safety & QA Protocols: Pre-calibration against material elasticity moduli, automatic temperature compensation algorithms, and permanent digital QA/QC logging.
INDUSTRIAL APPLICATIONS & SECTOR DEPLOYMENT
OIL, GAS & REFINERY SHUTDOWNS
Turnkey bolting for high-pressure fractionating columns, heat exchanger channel covers, reactor vessel heads, and cross-country pipeline flanges during scheduled unit overhauls.
POWER GENERATION & THERMAL PLANTS
High-temperature steam turbine casing bolting, boiler feed pump flanges, main stop valve bonnets, and high-pressure steam piping joints requiring precise thermal expansion clearance.
WIND TURBINE TOWER ERECTION
Foundation anchor bolt tensioning, tower section flange torquing, yaw bearing alignment, and gearbox mounting using cordless lithium-ion high-speed torque multipliers.
HEAVY INFRASTRUCTURE & OFFSHORE PLATFORMS
Heavy structural friction-grip (HSFG) bolting, riser clamp tightening, deck pressure vessel flanges, and subsea pipe flange connection management under severe marine environments.
TECHNICAL PARAMETERS MATRIX
| Operational Parameter | Low-Profile Hydraulic Torquing | Ultra-High Pressure Stud Tensioning | Digital Electric Torque Multipliers |
| Torque / Force Range | 100 Nm to 72,000 Nm | 100 kN to 10,000 kN | 200 Nm to 12,000 Nm |
| Max Working Pressure | 700 Bar 10,000 PSI | 1,500 to 4,000 Bar | Electric / Lithium-Ion Battery |
| Bolt Diameter Range | M16 to M120 (5/8″ to 4-3/4″) | M20 to M150 (3/4″ to 6″) | M16 to M64 (5/8″ to 2-1/2″) |
| Accuracy Rating | +-3% Calibrated Output | +-1% Direct Axial Stretch | +-2.5% Digital Cut-Off |
| Primary Industry | Petrochemical, Refineries, EPC | Power Boilers, Wind Foundations | PEB Erection, Structural Steel |
Why Choose Boltorq Infracon?
Why Industry Leaders Trust Boltorq Infracon for Critical On-Site Operations
- We combine heavy scaffolding access, cold pipe cutting, in-situ flange facing, field welding, structural erection, and controlled bolt torquing under one unified engineering desk.
- The Client Value: Completely eliminates multi-vendor scheduling friction, pass-the-buck liability disputes, and costly site mobilization overlaps.
- Operating strictly under ASME PCC-1 guidelines, our joint integrity crews combine 3D flange alignment audits, thread friction calculations, and multi-pass calibrated tightening using 4000-bar hydraulic tensioners.
- The Client Value: Delivers a 100% first-pass hydrotest success rate, protecting turnarounds from emergency shutdown extensions and re-gasketing downtime.
- Strategic central positioning in Jamnagar, Gujarat—India’s industrial refining hub—allows us to deploy specialized crews, mobile hydraulic rigs, and certified equipment trailers around the clock.
- The Client Value: Guaranteed rapid field response within 24 to 48 hours for emergency plant leaks, unplanned maintenance, and fast-track shutdown windows.
- Every field rigger, welder, machinist, and scaffolding specialist operates under strict ISO 9001, ISO 14001, and ISO 45001 safety protocols with daily green-tag auditing.
- The Client Value: A proven 0.00 Lost Time Injury (LTI) site safety record across high-elevation rigging, hot-work zones, and heavy lifts.
- We do not rely on rented, uncalibrated third-party gear. We own and maintain a fleet of heavy crawler cranes, System Ringlock scaffolding, split-frame pipe cutters, and laser-calibrated bolting power packs.
- The Client Value: Guaranteed tool accuracy (±3%), sub-micron measurement logging, and zero on-site tool breakdown delays.
SITE PREPARATION & ELECTRICAL PROTOCOLS
Before commissioning controlled bolting equipment on-site, our field crews verify the following parameters to ensure optimal tool performance and zero downtime:
REQUEST DEPLOYMENT DATACRITICAL PRE-USAGE & FIELD COMMISIONING CHECKS
FREQUENTLY ASKED QUESTIONS ABOUT
controlled bolting service
Which company provides the best bolt torquing service in India?
Boltorq Infracon is recognized as the best bolt torquing contractor in India. We combine calibrated hydraulic wrenches, 4000-bar tensioner pumps, and certified technicians operating under strict ASME PCC-1 guidelines to guarantee 100% leak-free hydrotesting across refinery and power plant turnarounds.
Why is controlled bolt torquing essential over manual hammering or uncalibrated impact wrenches?
Manual flogging or impact wrenches apply uneven stud loads, leading to pinched gaskets, thread galling, flange face warping, and eventual hydrotest leaks. Controlled bolt torquing applies calculated, uniform clamping loads, protecting equipment and preventing costly re-gasketing downtime.
What is the difference between hydraulic torque tightening and hydraulic stud tensioning?
Hydraulic torque tightening turns the nut using rotational force (subject to thread friction), making it ideal for standard industrial flanges. Hydraulic stud tensioning directly pulls and stretches the bolt axially before the nut is wound down hand-tight, eliminating rotational friction entirely—ideal for ultra-high-pressure reactors and turbines.
How quickly can Boltorq Infracon deploy a bolt torquing crew for emergency leaks?
Operating from our primary central hub in Jamnagar, Gujarat, Boltorq Infracon maintains 24/7 rapid-response contracting squads equipped with hydraulic tool trailers and power packs ready to mobilize within 24 hours.
READY TO SOLVE YOUR TIGHT-SPACE BOLTING CHALLENGES?
Contact our team at info@boltorq.com or rkpathak@boltorq.com for custom cassette configurations and fast global delivery.
